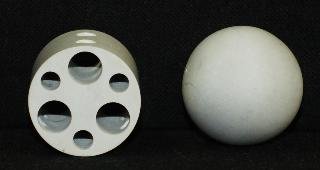

Ceramic Parts China & Components Limited is very pleased to offer the material BNP-2 Machinable Aluminium Nitride as a direct alternative to Shapal M. As you can see from the data sheets Shapal and BNP-2 are almost identical in every way and the only noticeable difference is a slight colour variation may be evident across BNP-2.
Ceramic Parts China offer a bespoke machining service in both materials as well as many other machinable ceramics and we would welcome the opportunity to quote in both Shapal and BNP-2.
Best described as a Machinable Aluminium Nitride BNP-2 compares favourably with other manufacturers versions of like materials and the only noticeable difference is a slight colour variation may be evident across BNP-2.
| Property | Test Conditions | BNP-2 | Units |
|---|---|---|---|
| GENERAL Density Porosity |
Corrected to 4°C 25°C |
2.90 < 0.1 |
g/cm3 % |
| ELECTRICAL Volume Resistivity Dielectric Constant (ε) Dielectric Strength |
25°C, DC 25°C 1MHz 25°C, sample thickness 1mm, AC |
1.0×1012 7.1 40 |
ΩcmkV/mm |
| THERMAL Thermal Conductivity Maximum Use TempThermal Stock Resistance ?T Thermal Expansion |
25°C In Air In non oxidizing atmosphere Water Quench400-600°C |
92.6 1020 1900 4004.5×10-6 |
W/m•K °C°C °C |
| MECHANICAL Bending Strength Compressive Strength |
25°C 25°C |
300 1170 |
MPa MPa |
Please do not hesitate to contact us should you wish to discuss any aspect of the above.
Further information is available upon request.
